Drape Supports

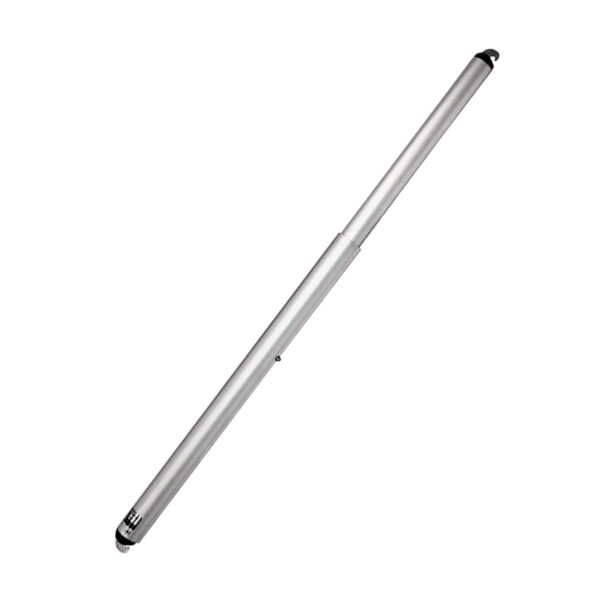

Telescopic Supports |

  • 54” Diameter outer aluminum tubing
  • Protective clear coating keeps drapery clean
  • Black supports are available by special order. Contact us for lead time and pricing.



Curved Supports |

  • Available in two sizes: 10’ (120”) and 12’ (144”) with a 24” depth
  • 54” Diameter outer aluminum tubing
  • Requires 3 Adjustable or Fixed Uprights and 3 Base Plates
  • Curved Supports are not adjustable.
  • Four sets make a complete 14.5’ diameter circle.
  • Interchangeable support hook can be located inside or outside of the arch.
  • Available in Silver only.

Call or Contact Us For A Quote

Pipe & Base Quote Request

Drape Supports

Telescopic Drape Supports
  Part Number   Range   Collapsed Length   Primary Use  Stopped  Length     Price
  TDS23   2' - 3'   25” (2’1”)   Shorter drape supports are needed (i.e.,  masking around poles/columns).   3’   $17.30
  TDS35   3' - 5'   37” (3’1”)   Shorter drape supports are needed (i.e.,  masking around poles/columns).   5’   $22.30
  TDS47   4' - 7'   51’ (4’3”)   Shorter drape supports are needed (i.e.,  masking around poles/columns).   6’ & 7’   $27.40
  TDS58   5' - 8'   63” (5’3”)   Shorter drape supports are needed (i.e.,  masking around poles/columns).   6’ & 8’   $32.50
  TDS681   6' - 10'   75” (6’3”)   For Booth & Backwall Applications   8’ & 10’   $35.60
  TDS712   7' - 12'   87” (7’3”)   For Booth & Backwall Applications   10’ & 12’   $40.50
  TDS8024   8' - 14'   99” (8’3”)   For Booth & Backwall Applications   10’, 12’ & 14’   $47.30
  TDS9246   9' - 16'   111” (9’3”)   Supporting Banners & lighter-weight  drapes.   10’, 12’, 14’ & 16’   $52.20
Curved Drape Supports
 Part Number  Range  Collapsed Length   Primary Use  Stopped  Length    Price
 301010-10   10'  N/A   Creating columns and curves in the  drape layout  10’   $105.60
 301012-12   12'  N/A   Creating columns and curves in the  drape layout  12’   $114.00
